Marine hydrophore tank
RAAH Group provides high-quality DC Pot Water System Hydrophore Tanks, engineered and fabricated to meet stringent marine and offshore operational requirements. Designed for reliable potable water pressure management, our hydrophore tanks are built for durability, safety, and long-term performance in demanding environments.

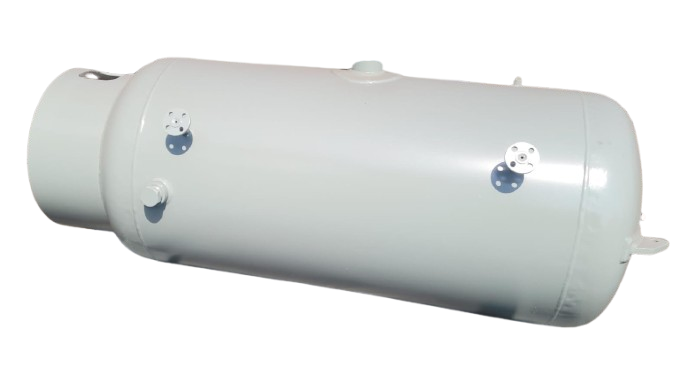

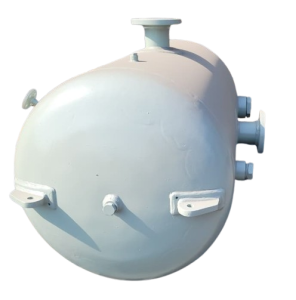

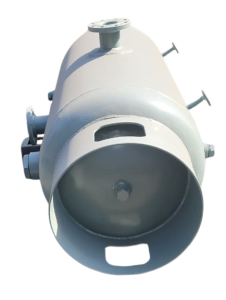

DC Pot Water System Hydrophore Tank
Product Overview
Our Pot Water Hydrophore Tank is fabricated as per approved client drawings and technical specifications, ensuring precise dimensional accuracy and compliance with project requirements.
Key Specifications
- Tank Shell Size: 768 mm Outer Diameter x 2040 mm Total Height
- Material: ASTM A36 Grade Steel
- Shell & Dish Ends: 8 mm thick plates
- Inlet Connection: 4” NB NPT Coupling
- Air Connection: 1” NB NPT Coupling
- Outlet & PRV Connections: 2” NB NPT Couplings (2 Nos.)
- Drain Valve Connection: 1-1/2” NB NPT Coupling with Plug
- Inspection Window: 4” NB Flange Type with Blind Flange & Gaskets (2 Nos.)
- Sight Glass Fittings: ½” Flange Connection with Gaskets (2 Nos.)
- Fasteners: SS304 Nuts, Washers & Bolts
Quality & Testing
To ensure reliability and safety, each hydrophore tank undergoes rigorous inspection and testing, including:
- Hydrostatic Testing: Pressure tested at 150 PSI SWP
- MPI Testing: Magnetic Particle Inspection on welded joints by certified authorities
- Surface Preparation: Sand blasted to SA 2.5 standard
- Protective Coating: Industrial-grade painting for corrosion resistance and long service life
Applications
Suitable for:
- Marine Vessels
- Offshore Platforms
- Oil & Gas Facilities
- Industrial Potable Water Systems
- Utility and Infrastructure Projects
RAAH Group delivers custom-fabricated hydrophore tanks tailored to project requirements, ensuring performance, compliance, and operational reliability.
